GPD80 Pivot Door
GPD80 Pivot Door

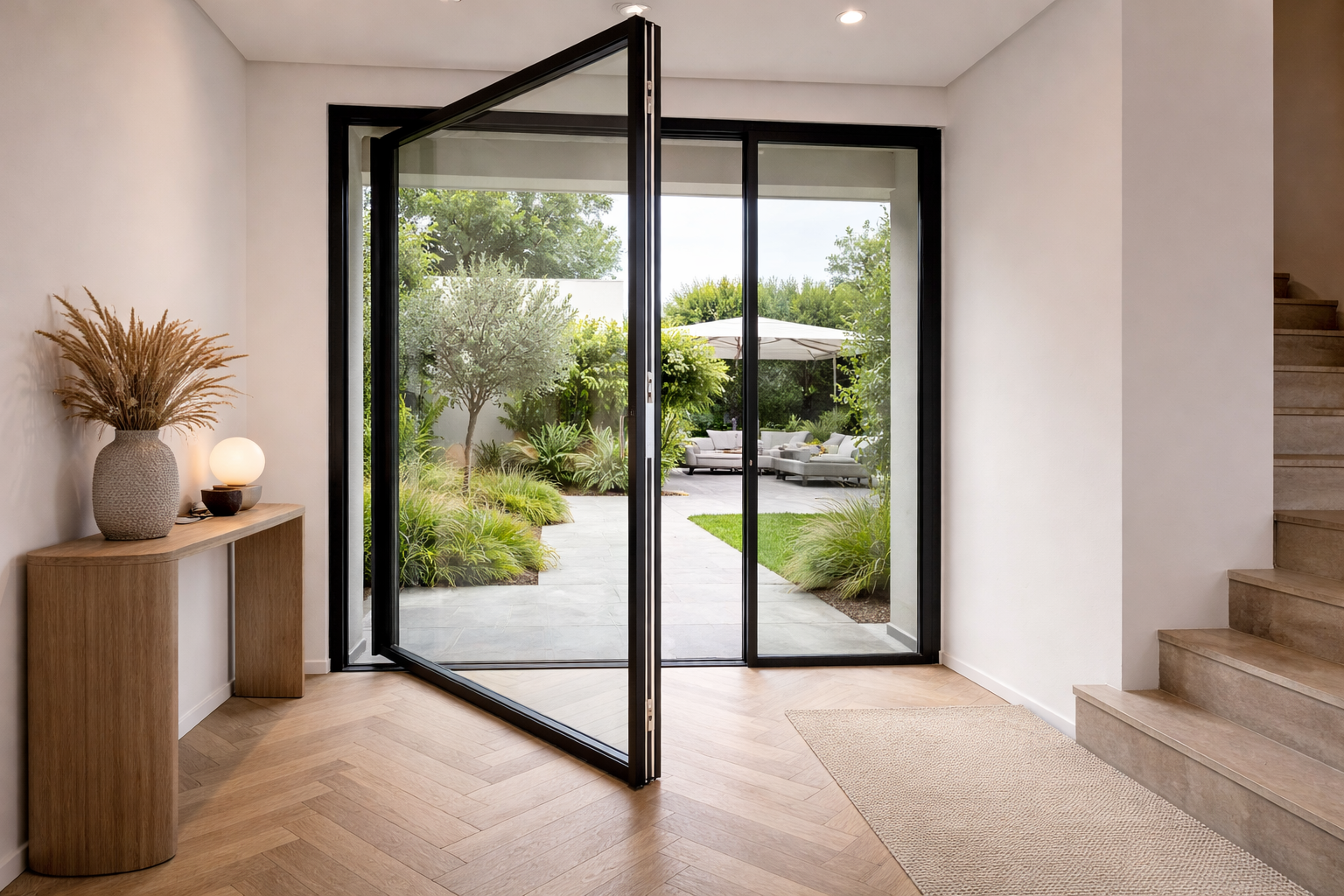

The GPD80 aluminium pivot door creates a bold architectural entrance with oversized panels, concealed pivot hinges, smooth balanced motion, high security and thermal performance. Precision engineered and made to measure by Glideline.
Get your quote:
mm x mm
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Open In
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Anthracite Grey
1. Width: Measure horizontally across the opening from edge to edge at the top, middle, and bottom. Use the smallest measurement.
2. Height: Measure vertically from top to bottom on the left, center, and right sides. Use the smallest measurement.
Need to talk to an expert? Get in touch
Overview
Large Panel Sizes
The GPD80 pivot door supports impressive panel sizes up to 2.1m wide x 3.0m high, creating a bold architectural entrance with fewer sightlines, seamless scale and effortless pivot movement. Engineered for strength, stability and smooth long-term performance.
High Thermal Efficiency
Engineered for modern performance, the GPD80 pivot door achieves U-values from 0.77 W/m²K triple glazed, helping to reduce heat loss, improve energy efficiency and maintain comfortable interior temperatures all year round.
Flexible Configurations
Designed for versatility, the GPD80 pivot door is available with low threshold options, open-in or open-out operation, and a range of sub-cill sizes to suit different floor levels, drainage requirements and installation conditions.
Precision Engineered Performance
The GPD80 pivot door is developed with a strong focus on engineering, combining structural strength, balanced pivot geometry and high-quality hardware to support large-format panels with smooth, controlled movement.
Configurations

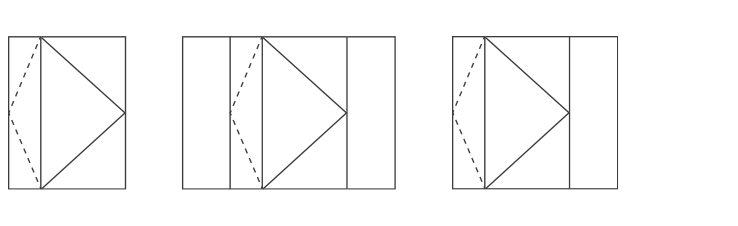

The GPD80 pivot door is available in a range of configurations to suit different entrance designs, including pivot door with single sidelight, double sidelights, or offset sidelight layouts. These options allow flexible design, balanced proportions and seamless integration with both symmetrical and asymmetrical architectural openings.
Engineered Aluminium Profile

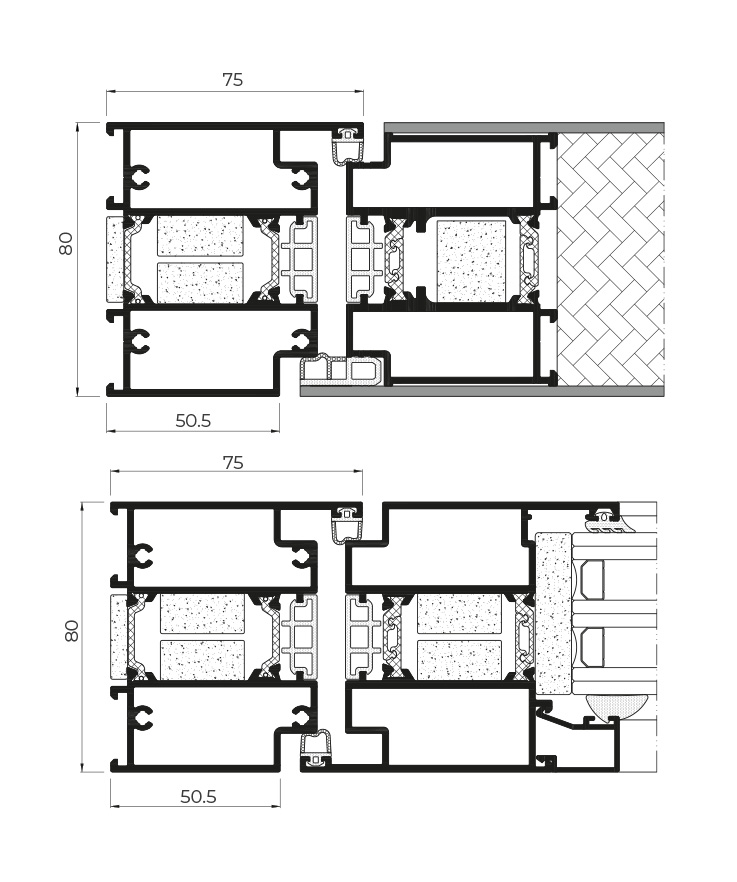

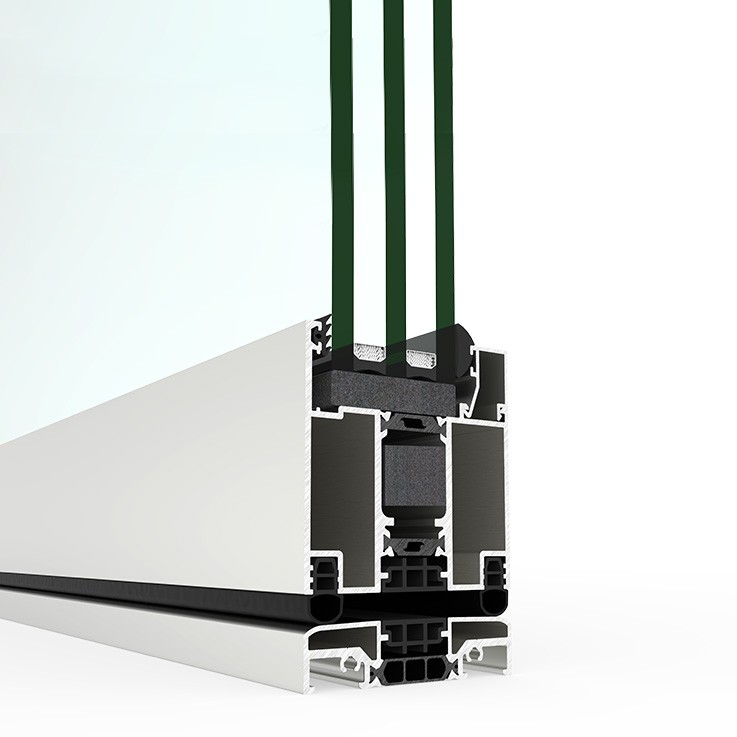

The GPD80 pivot door is built around a robust 80mm thermally broken aluminium profile, designed to deliver structural strength, thermal efficiency and long-term stability. The multi-chamber construction improves insulation while maintaining the rigidity required for large-format pivot panels.
.png)
Seamless Threshold
The GPD80 pivot door features a flush threshold for clean floor integration between internal and external finishes, supporting barrier-free access and uninterrupted spatial flow. An integrated concealed drainage system manages water effectively while maintaining a minimal architectural detail and reliable weather performance.
Technical specifications
General
Sightlines:
Frame 80mm, Sash 80mm
Glazing:
Min 28mm / Max 64mm
Maximum Dimensions:
Max Width: 2100mm
Max Height: 3000mm
Max Sash Weight: 160kg
Test Data
U value from 0.77 (W/m2K)
Air permeability (EN12207): Class 4*
Water tightness (EN12208): Class 5A*
Wind resistance (EN12210): Class 5C*
* Double glazing Ug=1.0 / Triple glazing Ug=0.5
Security test: Reference test 1.2 x 2.0 m / 1 sash
Variations
Solar Control Glazing
Aluminium Panel
Integrated Drainage
Colour Finishes
Available from Glideline
Powder Coating RAL Finish
Standard 7016M and 9005M, 9016G
Available in 150+ RAL finishes
Textured finish available
Anodized aluminium
Class 15; 15-19 micrometer coating for external use as standard
Class 20; 20-24 micrometer coating for use in aggressive conditions, industrial areas and marine pollution
Silver brushed, silver rough brushed, bright silver, matte silver, brushed steel, rough brushed steel, brushed champagne re-polished, bright gold, rough brushed inox re-polished, brushed stainless steel, rough brushed ivory re-polished, brushed bronze, rough brushed bronze and re-polished, rough brushed copper re-polished, rough brushed Bordeaux re-polished, rough brushed green, rough brushed blue re-polished, rough brushed grey re-polished, matte black
Wood effect powder coating
Available in pine, oak, cherry wood, sapele, African walnut, walnut, chestnut and white wood
Reviews
Lovely system. Feels solid, operates smoothly and the finish is excellent.
FAQs
What is a pivot door and how does it work?
A pivot door rotates on concealed top and bottom pivot hinges rather than traditional side hinges. This allows the door to support larger, heavier panels while delivering smooth, balanced movement and a clean architectural appearance.
What sizes are available for the GPD80 pivot door?
The GPD80 is engineered for large-format entrances and can accommodate panel sizes up to 2.1m wide x 3.0m high, depending on configuration and specification. This enables bold, statement entrances with minimal visual interruption.
Does the GPD80 pivot door offer good thermal and weather performance?
Yes. The system features a thermally broken aluminium profile, high-performance sealing and integrated drainage within the threshold. This helps achieve U-values from 0.77 W/m²K while maintaining reliable weather resistance and long-term performance.
If we haven’t answered your question, Send us a message
